OVERVIEW

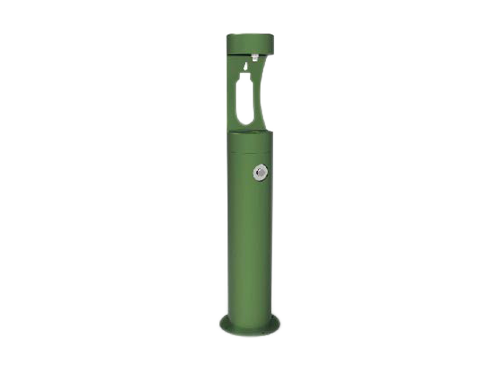

Model OA41 drinking fountain is a steel outdoor single pedestal
tubular bottle filling station with rounded corner design, heavy
-duty steel with textured powder-coat finish for year-round
beauty with minimum maintenance. The powder-coat process
coats the inside and outside for the ultimate in corrosion
protection.
Unit shall include powder-coated finish with vandal resistant
pushbutton actuation, bottle filler shall include a laminar flow for
minimal splash and provide1 gallon per minute fill rate.
APPLICATIONS
- Office Building
- Public Transport Station
- Academy
- Gym / Fitness
- Stadium
- Hospital
- School
- Nursing Homes
FEATURES / BENEFITS
Bottle Filler
Provides a quick fill at 1 gallon per minute. Laminar
flow provides a clean fill with minimal splash and easy
maintenance.
Pushbutton Activation Mechanism
Self-closing, vandal-resistant pushbutton does not require
grasping or twisting.
Water Inlet & Drain Outlet
Inlet: 1/4” O.D.
Tubing Outlet: 1-1/4” tube outlet for 1-1/4” slip joint
connection
Access Panels
Heavy-gauge steel with vandal-resistant screws.
Provides access for easy hook-up of all plumbing connections.
